Products

VACUUM PUMP UNITS



Features:
1. High Pumping Speed
2. Short Pumpdown Time
3. Model JK and JTK 10-2-10-4 Pa
    Model JF 10-2-10-4 Pa
4. Producing Clean Vacuum by Model JF Units

Applications:
1. Chemical Engineering
2. Petroleum Industry
3. Elegtronics Industry
4. Vacuum Metallurgy

Note:Offer Ultra-High Vacuum Unit with its Ultimate Pressure lower than 10-8 Pa to meet the customer requirements

Option

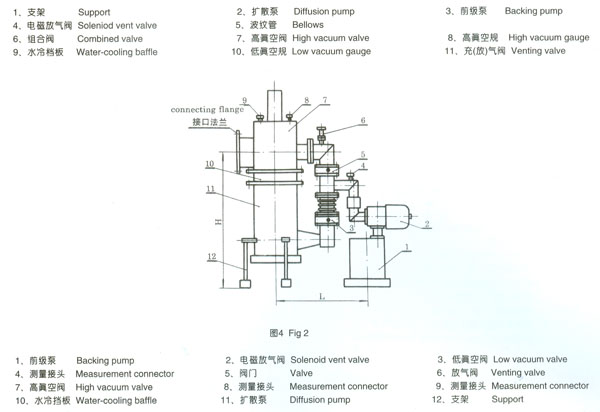

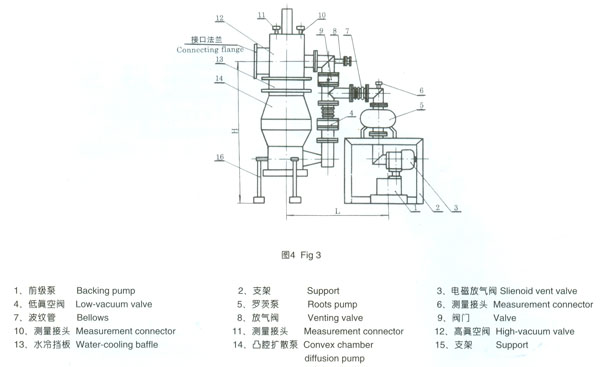

To meet your application demands, you can choose Fig.1 for Model JK and JTK 200 (or less than 200) diffusion pump units, Fig.2 and fig.3 for Models JK and JTK (or more than 300) diffusion pump units, FigA for Model JF turbomo­lecular pump unit.

Outline of Model JK Diffusion Pump Unit

1

1

Model JK-100 JK-150 JK-200 JK-300 JK-400 JK-630 JK-800
Ultimate pressure (Pa) 10-4
Pumping speed (1/S) 100 280 420 900 1800 4000 6500
Max.pumping pressure (Pa) 35
Heating power (Kw) 0.8 1 1.5 2.5 4.5 7 9
Matched main pump K-100 K-150 K-200 K-300 K-400 K-630 K-800
Matched baffle LB-100 LB-150A LB-200B LB-300A LB-400 LB-630 LB-800
Matched valve GD-100 GD-150 GD-200 GDO-300 GDO-400 GDO-630 GDO-800
Matched backing pump 2X-4   2X-8 2X-15 2X-30 2X-70 2X-70
ZJ-500
Connecting fiange LF-100 LF-150 LF-200 LF-300 LF-400 LF-630 LF-800
Structure dimensions(mm)
H

 870 1000 1300 1500 1800 2100 2500
L
 550 650 750 850 950 1100 2000

Outline of Model JTK Diffusion Pump Unit

11

Model JTK-100 JTK-150 JTK-200 JTK-300 JTK-400 JTK-500
Ultimate pressure (Pa) 10-4
Pumping speed (1/S) 180 370 600 1400 2500 4000
Max.pumping pressure (Pa) 35
Heating power (Kw) 0.8 1 1.5 2.2 4 6
Matched main pump TK-100 TK-150 TK-200 K-300 TK-400 TK-500
Matched baffle LB-100 LB-150A LB-200B LB-300A LB-400 LB-500
Matched valve GB-100 GD-150 GD-200 GDQ-300 GDQ-400 GDQ-500
Matched backing pump 2X-4 2X-8 2X-15 2X-30 2X-70 2X-70
ZJ-500
Connecting fiange LF-100 LF-150 LF-200 LF-300 LF-400 LF-500
Structure dimensions(mm)
H

 870 1000 1300 1500 1800 1900
L
 650 750 850 950 1100 1500
